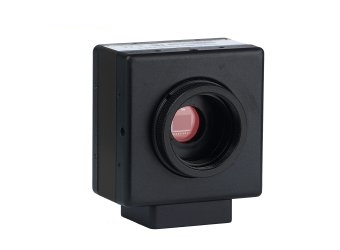

AcquCAM 3

Down load catalog – 준비중

3 Mega pixel CMOS camera Color, Progressive scan High speed USB 2.0 Interface (480Mbits/sec) 10 fps at 2048×1536 resolution

AcquCAM3 is designed for acquiring the microscope image. 3 mega pixel image for microscope image provides an optimized solution. By USB 2.0 interface, with only one cable connection, the 3 mega pixel image can be observed in 10 frames per second and microscope image can be observed, as up to 35.5 frames of high-speed.

  • 3 Mega pixel CMOS camera
  • Color, Progressive scan
  • High speed USB 2.0 Interface (480Mbits/sec)
  • 10 fps at 2048×1536 resolution / up to 35.5 fps at 1024×768 resolution
  • Auto white balance support
  • RGB Bayer video output
  • All camera parameters adjustable via the computer
  • Preview software provided (JNOPTIC Capture)
  • Software compatible with Windows XP/ Vista/ 7 operating systems

Wide use of high speed CMOS camera

With emphasis function, BLACK BALANCE / AUTO LEVEL of ARM
on variety images, you could acquire cleaner and sharper images.

그림17

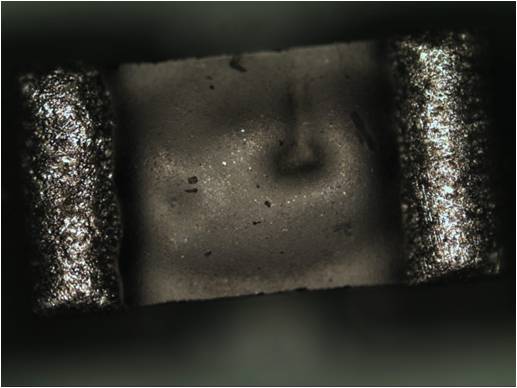

High sensitive observation of 3 mega pixel

그림15

[Specification]
Spec Description
Size 1/2 inch
Resolution H: 2048, V: 1536
Pixel size H: 3.2 µm, V: 3.2 µm
Video formats

& Frame rate

2048×1536 RGB32 @ 10, 7.5, 5, 3.75 fps
1024×768 RGB32 @ 35.5, 30, 15, 10 fps
2048×1536 Y800 @ 10, 7.5, 5, 3.75 fps
1024×768 Y800 @ 35.5, 30, 15, 10 fps
Sensitivity 5 lx
Exposure time 1/10,000 to 4 sec
Lens mount C/Cs mount
Interface USB 2.0
Power supply 4.5 to 5.5 VDC
Dimensions H: 50.6 mm, W: 50.6 mm, L: 29 mm
Mass 140 g
