Large Field of View sCMOS Camera

High Resolution Imaging IRIS 9

Iris 9 Scientific sCMOS camera는 Live cell Imaging에 최적화된 고해상도 카메라입니다.

  • Iris 9 Scientific camera
  • 75% Quantum Efficiency
  • 4.25um x 4.25um Pixe Area
  • 9 Megapixel (2960×2960)


Customer Stories


Sensor TechnologysCMOS, Gpixel GSense 5130 Scientific CMOS sensor
Quantum Efficiency73%
Pixel Size4.25um X 4.25um
Supported InterfacesPCIe ,USB3.0
Spectrum CapabilitiesVisible(400-700nm), Near Infrared(700-1000nm)
Read Noise(median)1.5 e-
Sensor Area12.61mm X 12.61mm , 17.8mm Diagonal
Frame Rate30fps @16bit
Iris 99M pixels (2960×2960)
Lens InterfaceC-mount

Resolution and Pixel Size

The small, 4.25 µm pixels provide highly detailed images across the imaging plane, which allows for the highest resolution when using lower magnification objectives.

sCMOS Sensitivity

The low noise and high quantum efficiency across a wide range of wavelengths produces higher quality images with lower exposure times than conventional CCD cameras.

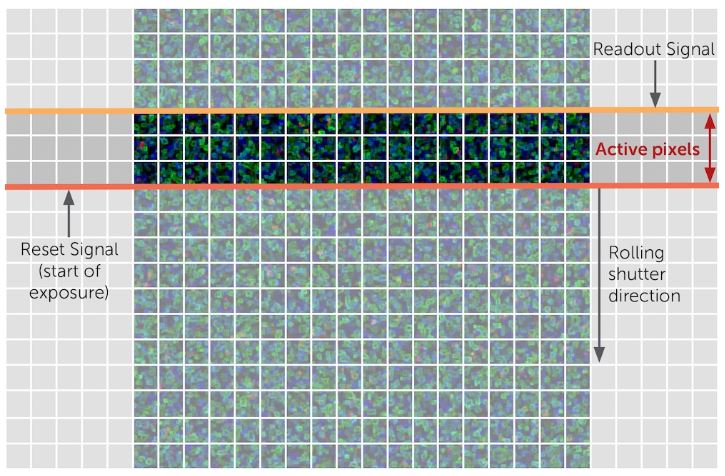

Advanced Triggering

Programmable Scan Mode provides increased control over the rolling shutter exposure and read-out functionality of CMOS sensors by providing access to the sensor timing settings to allow optimization around applications that require control over the line time.

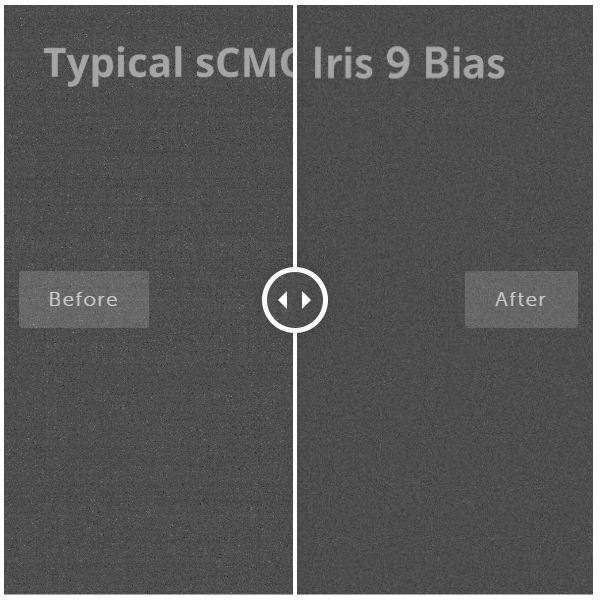

Superior Background Quality

The Iris 9 features Pattern Noise Reduction Technology and Correlated Noise Reduction Technology to ensure that it delivers clean, pattern-free images with minimal pixel defects, delivering improved image quality in low light conditions.

Compact Form Factor

The Iris 9 is a compact 76 x 76 x 88 mm with optimized cooling for the size, ideal for integration into new or existing configurations.

IRIS 9 Camera Datasheet

Iris Camera Manual

DIC imaging of the cardinal vein of a zebrafish taken on the Iris 9 scientific CMOS.
Zebrafish cilia captured at 100 fps on the Iris 9 Scientific CMOS camera
