Prime BSI Express Scientific CMOS(sCMOS)는 최적화된 컴팩트 플랫폼으로 최적화된 Pixel 디자인, USB 3.2 Gen 2 연결성, 완벽한 95% Quantum Efficiency를 통해 고해상도 고감도 이미징의 완벽한 균형을 제공함으로써 최대한의 신호를 감지합니다.

  • 95% Quantum Efficiency
  • 1.0e- Read Noise
  • 6.5um x 6.5um Pixel Area
  • 95 FPS over USB3.2 Gen2


Customer Stories


Sensor TechnologysCMOS
Quantum Efficiency95%
Pixel Size6.5um X 6.5um
Supported InterfacesUSB3.2 Gen2
Spectrum CapabilitiesUV(200-400nm), Visible(400-700nm), Near Infrared(700-1000nm)
Read Noise(median)1.0 e-
Sensor Area13.3mm X 13.3mm
Frame Rate43fps @ 16bit / 43fps @12bit / 95fps @11bit
Prime BSI Express4.2M pixels (2048×2048)


By bringing the light in from the back of the sensor, photons land directly onto the light receiving surface, maximizing light collecting capability. The Prime BSI Express combines 95% quantum efficiency with the low 1.0 e- read noise CMS mode to deliver the most sensitive camera based on sCMOS technology at over 40 frames per second.

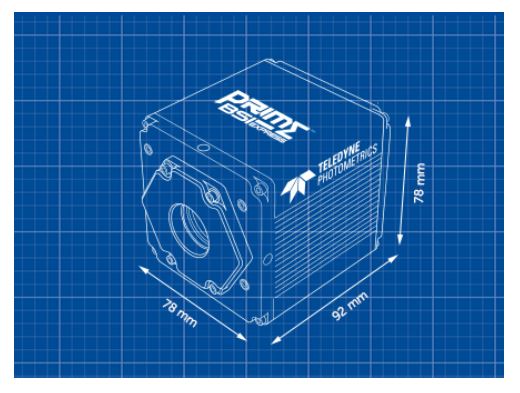

Compact Form Factor

The Prime BSI Express is a compact 78mm x 78mm x 90mm with optimized cooling for the size, ideal for integration into new or existing configurations.

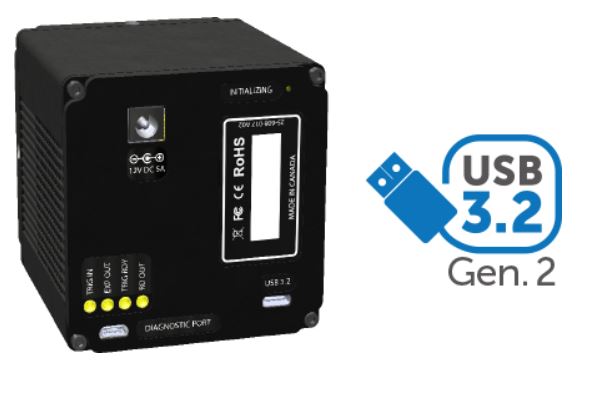

Interface and Integrate

Interfacing and integration is simple with the Prime BSI Express, which uses USB 3.2 Gen 2 for truly uncomplicated connectivity. Our standard PVCAM driver can be easily installed in Windows operating systems to get the Prime BSI Express running in minutes.

Resolution and Pixel Size

The Prime BSI Express features 6.5 µm pixels, the accepted standard for most live cell applications. This pixel size provides highly detailed images across the imaging plane and is most suitable for the broadest range of magnifications.

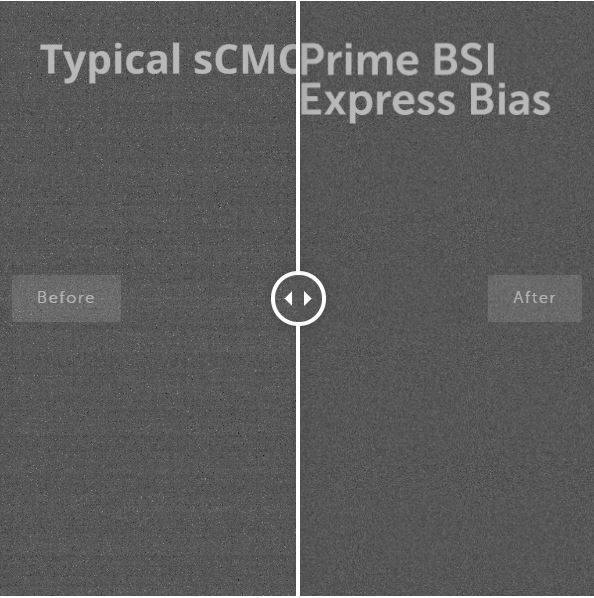

Superior Background Quality

The Prime BSI Express features Pattern Noise Reduction Technology and Correlated Noise Reduction Technology to ensure that it delivers clean, pattern-free images with minimal pixel defects, delivering improved image quality in low light conditions.
