Precisionary Feature

– Compresstome® 슬라이서의 장점

Compresstome® 슬라이서는 Vibratome 의 일반적인 3 가지 한계를 개선하는데 유용한 장비 입니다.

일반 Vibratome 슬라이서의 3 가지 단점 :
  1. 시간이 많이 소요됩니다.
    (커팅 속도가 느리면 슬라이싱 된 조직의 상태가 나빠질 수 있습니다.)
  2. 절단 속도를 빠르게 하면 채터 마크가 발생합니다.
  3. 일부 조직은 찢어 지거나 절단되지 않을 수 있습니다.
 Compresstome®을 선택해야하는 이유 :

1. 프레쉬한  조직의 절편을 타사 제품보다 5 배 빠르게 생성합니다. 시간이 많이 소요되는 타사의 제품에 비해 Compresstome® 은 빠르게 조직을 절단하여  건강한 세포의 수를 증가시켜 전기 생리학 및 이미징 실험을 더 효율적으로  만듭니다.

2. 보다 더 큰 크기의 조직 을 절단 할 수 있습니다.  고정된 조직의 경우,  Compresstome®은 채터 마크 없이 4 μm에서 500 μm 두께의 조직을 절단 할 수 있습니다.

3. 절단하기 어려운 섬유질로 된 조직의 절단도 가능합니다.

4. 채터 마크 나 티슈의 찢어짐이 없습니다.

아래는 Compresstome®을 사용한 조직의 절단 결과가 타사의 진동 마이크로톰으로 만들어진 부분과 어떻게 비교되는지를 시각적으로 보여주기 위해 실행한 테스트의  결과입니다.

Compresstome® VF-300-0Z Other market vibratome

Magnification : 10X

Magnification : 10X

Magnification : 40X

Magnification : 40X

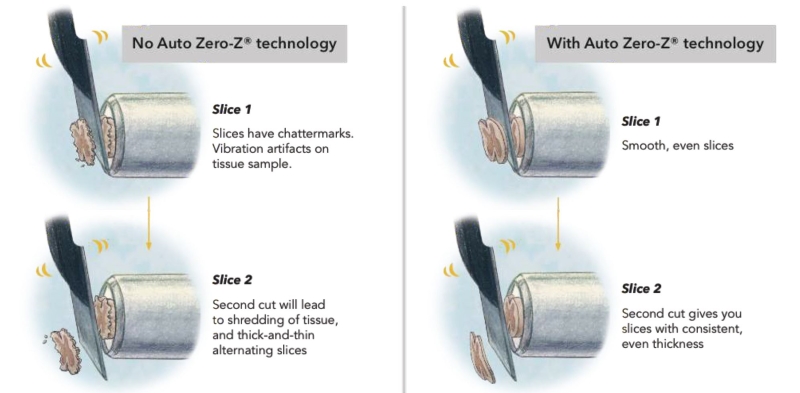

– Auto Zero-Z® Technology 의 이점

Compresstome® vibratomes 에는 특허받은 Auto Zero-Z® 기술을 적용하여 절단할 때마다 일정하고 균일한 샘플을 얻을 수 있습니다.  또한, Auto Zero-Z® 기술을 이용하여 Calibration에  시간을 소모할 필요가 없어 효율적인 실험을 가능하게 합니다.

Please ensure that you follow the special instructions for blade mounting to ensure that Auto Zero-Z® works every time you slice.

The advantages of the Auto Zero-Z® combined with Compresstome® techniques are:

  • Healthier slices and better surface structure preservation.
  • Thinner minimum slice thickness. By combining the Auto Zero-Z® and Compresstome® technology, it is now possible to achieve an unprecedented fixed brain slice thickness of 4μm* without paraffin embedding or freezing.
  • No vibration marks on the fixed brain slices. The result is a very smooth and flat slice surface which is optimal for histological processing.
  • No optical alignment device is required for Auto Zero-Z® operation.
  • No blade alignment procedure is required when changing to a new blade

*  Depends on tissue type and organ system.
