태그 보관물: chroma

ZsYellow

Spectrum Chart

ZsYellow Spectrum
Excitation () Emission ()
529 539

Recommended Filter Set

  • 일반 형광 Lighting source 사용시

Filter Model No. Excitation filter (㎚) Dichroic mirror (㎚) Emission filter (㎚) Remarks
49003 500/20
(490~510)
515 (LP) 540/30
(525~555)
Narrow Excitation band,
Bandpass Emission
49023 480/40
(460~500)
510 (LP) 535/50
(510~560)
Wide Excitation band,
Bandpass Emission



  • 레이저 Lighting source  사용시

Filter Model No. Excitation filter (㎚) Dichroic mirror (㎚) Emission filter (㎚) Remarks
49905 514/10
(509~519)
514 (LP) 545/40
(525~565)
For use with laser between 511~517

Narrow Excitation band,
Bandpass Emission







ZsGreen1

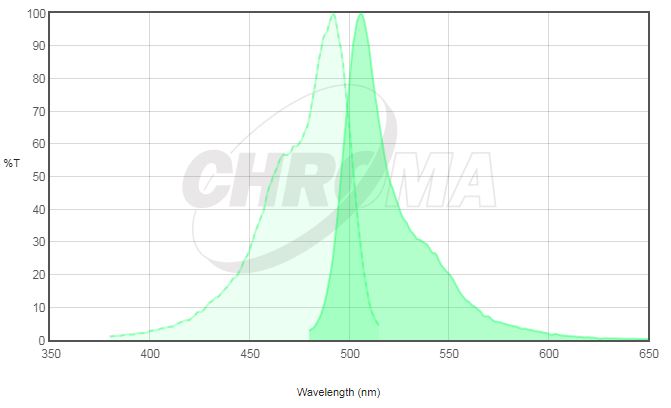

Spectrum Chart

ZsGreen1 Spectrum

Excitation () Emission ()
493 505

Recommended Filter

  • 일반 형광 Lighting source 사용시

Filter Model No. Excitation filter (㎚) Dichroic mirror (㎚) Emission filter (㎚) Remarks
JNO-B(B) 480/30
(465~495)
505 (LP) 535/40
(515~555)
Medium Excitation band,
Bandpass Emission
49002 470/40
(450~490)
495 (LP) 525/50
(500~550)
Wide Excitation band,
Bandpass Emission
49020 480/20
(470~490)
495 (LP) 510/20
(500~530)
Narrow Excitation band,
Bandpass Emission



  • 레이저 Lighting source  사용시

Filter Model No. Excitation filter (㎚) Dichroic mirror (㎚) Emission filter (㎚) Remarks
49904 488/10
(483~493)
488 (LP) 525/50
(500~550)
For use with laser between 485~491

Narrow Excitation band,
Bandpass Emission







Texas Red-X

Spectrum Chart

Texas Red®-X Spectrum
Excitation () Emission ()
595 615

Recommended Filter

  • 일반 형광 Lighting source 사용시

Filter Model No. Excitation filter (㎚) Dichroic mirror (㎚) Emission filter (㎚) Remarks
JNO-R1(B) 560/40
(540~580)
600 (LP) 635/60
(605~665)
Wide Excitation band,
Bandpass Emission
49008 560/40
(540~580)
600 (LP) 630/75
(592.5~667.5)
Wide Excitation band,
Bandpass Emission
49306 580/25
(567.5~592.5)
600 (LP) 625/30
(610~640)
Narrow Excitation band,
Bandpass Emission



  • 레이저 Lighting source 사용시 -> 문의 주시기 바랍니다.









Texas Red

Spectrum Chart

Texas Red Spectrum

Excitation () Emission ()
595 620

Recommended Filter

  • 일반 형광 Lighting source 사용시

Filter Model No. Excitation filter (㎚) Dichroic mirror (㎚) Emission filter (㎚) Remarks
JNO-R1(B) 560/40
(540~580)
600 (LP) 635/60
(605~665)
Wide Excitation band,
Bandpass Emission
49008 560/40
(540~580)
600 (LP) 630/75
(592.5~667.5)
Wide Excitation band,
Bandpass Emission
49306 580/25
(567.5~592.5)
600 (LP) 625/30
(610~640)
Narrow Excitation band,
Bandpass Emission



  • 레이저 Lighting source 사용시

Filter Model No. Excitation filter (㎚) Dichroic mirror (㎚) Emission filter (㎚) Remarks
49910 561/10
(556~565)
561 (LP) 630/70
(595~665)
For use with laser between 557~563

Narrow Excitation band,
Bandpass Emission

49911 594/10
(589~599)
594 (LP) 645/75
(607.5~682.5)
For use with laser between 591~596

Narrow Excitation band,
Bandpass Emission







Tetramethylrhodamine isothiocyanate

Spectrum Chart

Tetramethylrhodamine isothiocyanate Spectrum

Excitation () Emission ()
555 5840

Recommended Filter



  • 일반 형광 Lighting source 사용시

Filter Model No. Excitation filter (㎚) Dichroic mirror (㎚) Emission filter (㎚) Remarks
JNO-G(B) 540/25
(527.5~552.5)
565 (LP) 605/55
(577.5~632.5)
Narrow Excitation band,
Bandpass Emission
49004 545/25
(532.5~557.5)
565 (LP) 605/70
570~640)
Narrow Excitation band,
Bandpass Emission
49305 546/22
(535~557)
565 (LP) 590/33
(573.5~606.5)
Narrow Excitation band,
Bandpass Emission

  • 레이저 Lighting source 사용시

Filter Model No. Excitation filter (㎚) Dichroic mirror (㎚) Emission filter (㎚) Remarks
49908 532/10
(527~537)
532 (LP) 590/50
(565~615)
For use with laser between 529~535

Very Narrow Excitation band,
Bandpass Emission

49909 561/10
(556~566)
561 (LP) 600/50
(575~625)
For use with laser between 557~563

Narrow Excitation band,
Bandpass Emission







TagRFP

Spectrum Chart

TagRFP Spectrum

Excitation () Emission ()
556 584

Recommended Filter Set

  • 일반 형광 Lighting source 사용시

Filter Model No. Excitation filter (㎚) Dichroic mirror (㎚) Emission filter (㎚) Remarks
JNO-G(B) 540/25
(527.5~552.5)
565 (LP) 605/55
(577.5~632.5)
Narrow Excitation band,
Bandpass Emission
49004 545/25
(532.5~557.5)
565 (LP) 605/70
570~640)
Narrow Excitation band,
Bandpass Emission
49305 546/22
(535~557)
565 (LP) 590/33
(573.5~606.5)
Narrow Excitation band,
Bandpass Emission



  • 레이저 Lighting source 사용시

Filter Model No. Excitation filter (㎚) Dichroic mirror (㎚) Emission filter (㎚) Remarks
49908 532/10
(527~537)
532 (LP) 590/50
(565~615)
For use with laser between 529~535

Narrow Excitation band,
Longpass Emission

49909 561/10
(556~566)
561 (LP) 600/50
(575~625)
For use with laser between 557~563

Narrow Excitation band,
Bandpass Emission





TagBFP

Spectrum Chart

TagBFP Spectrum

Excitation () Emission ()
402 457

Recommended Filter

  • 일반 형광 Lighting source 사용시

Filter Model No. Excitation filter (㎚) Dichroic mirror (㎚) Emission filter (㎚) Remarks
49021 405/20
(395~415)
425 (LP) 460/50
(435~485)
Narrow Excitation band,
Bandpass Emission
49028 395/25
(382.5~407.5)
425 (LP) 460/50
(435~485)
Narrow Excitation band,
Bandpass Emission



  • 레이저 Lighting source 사용시

Filter Model No. Excitation filter (㎚) Dichroic mirror (㎚) Emission filter (㎚) Remarks
49901 405/20
(395~415)
405 (LP) 460/50
(435~485)
For use with laser between 400~410

Narrow Excitation band,
Bandpass Emission







Rhodamine Red-X

Spectrum Chart

Rhodamine Red™-X Spectrum

Excitation () Emission ()
578 604

Recommended Filter Set

  • 일반 형광 Lighting source 사용시

Filter Model No. Excitation filter (㎚) Dichroic mirror (㎚) Emission filter (㎚) Remarks
JNO-R1(B) 560/40
(540~580)
600 (LP) 635/60
(605~665)
Wide Excitation band,
Bandpass Emission
49008 560/40
(540~580)
600 (LP) 630/75
(592.5~667.5)
Wide Excitation band,
Bandpass Emission



  • 레이저 Lighting source  사용시

Filter Model No. Excitation filter (㎚) Dichroic mirror (㎚) Emission filter (㎚) Remarks
49910 561/10
(556~566)
514 (LP) 630/70
(595~665)
For use with laser between 557~563

Narrow Excitation band,
Bandpass Emission







Rhodamine 6G

Spectrum Chart

Rhodamine 6G Spectrum

Excitation () Emission ()
570 590

Recommended Filter

  • 일반 형광 Lighting source 사용시

Filter Model No. Excitation filter (㎚) Dichroic mirror (㎚) Emission filter (㎚) Remarks
49023 480/40
(460~500)
510 (LP) 535/50
(510~560)
Wide Excitation band,
Bandpass Emission



  • 레이저 Lighting source  사용시

Filter Model No. Excitation filter (㎚) Dichroic mirror (㎚) Emission filter (㎚) Remarks
49906 514/10
(509~519)
514 (LP) 570/50
(545~595)
For use with laser between 511~517

Narrow Excitation band,
Bandpass Emission

49907 532/10
(527~537)
532 (LP) 575/50
(550~600)
For use with laser between 529~535

Narrow Excitation band,
Bandpass Emission
