JNOPTIC Filter 49023
Download Catalog_49023

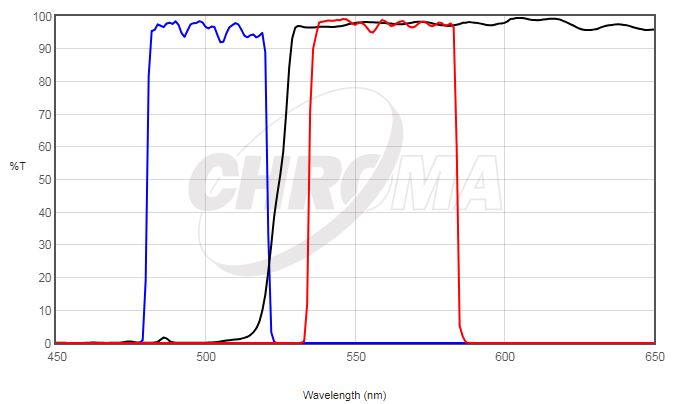

49023 Spectrum
| Filters | Type |
| ET500/40x | EX |
| T525lpxr | BS |
| ET560/50m | EM |
– Filter set for AlexaFluor 514/ZsYellow/Eosin
- Main Fluorochromes : AlexaFluor 514
| Excitation (㎚) | Emission (㎚) |
| 517 | 539 |

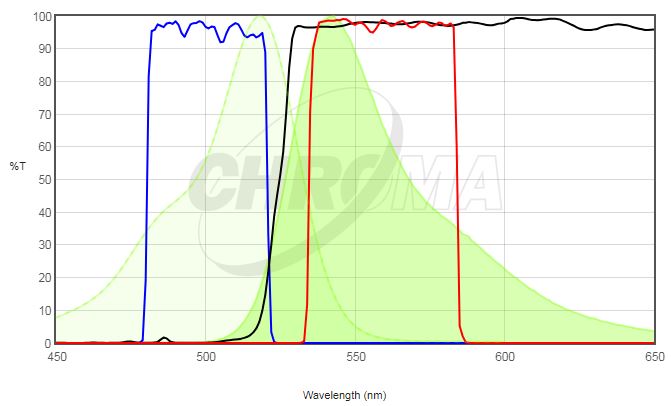

Spectrum Comparison Fluor and 49023
Best with these fluorochromes
- Alexa Fluor 514™
- CAL Fluor® Gold 540
- CAL Fluor® Orange 560
- Eosin
- HEX,SE
- JOE
- LysoTracker Yellow HCK-123
- Rhodamine 6G
- TET
- ZsYellow
49023 Spec
- Typical Application(s) : Widefield Microscopy
- Coating : Sputter/Hard Coated
- Round excitation and emission filters mounted in anodized aluminum rings 2.3mm thick, up to 25mm in diameter
- Rectangular dichroics up to 26x38mm, 1mm thick, to fit standard microscope manufacturer filter cubes
