49910

JNOPTIC Filter 49910

Download Catalog_49910

49910 Spectrum

Filters Type
ZET561/10x EX
 ZT514rdc BS
ET630/70m EM



– Filter set of 561nm Laser Bandpass Set for AlexaFluor 568, AlexaFluor 594, Texas Red®, mCherry

For use with lasers between 557-563

Excitation () Emission ()
587 610



Spectrum Comparison Fluor and 49910

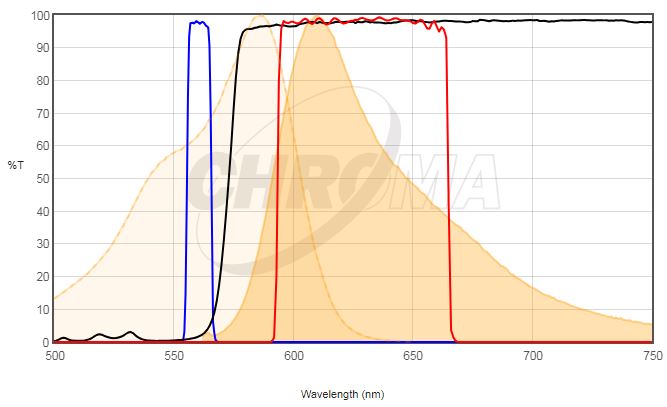

mCherry VS 49910



49910 Spec

  • Typical Application(s) : Laser (Non-TIRF)
  • Coating : Sputter/Hard Coated
  • Round excitation and emission filters mounted in anodized aluminum rings 2.3mm thick, up to 25mm in diameter
  • Rectangular dichroics up to 26x38mm, 1mm thick, to fit standard microscope manufacturer filter cubes
