ColorView III

Soft Imaging System의 디지털 카메라는 디지털 이미지 획득의 기대에 부응하여 꾸준히 대응하고 있습니다.

ColorView III는 광학 현미경을 위한 칼라 카메라 시리즈의 최신작 입니다.

ColorView III는 생명과학(Life science)  및 Biomedicine의 모든 응용 분야 뿐만 아니라 재료 과학 (Materials sciences) 분야에 동등하게 적용할 수 있습니다.

Extraordinary features…
are what make the 5 MegaPixel color camera ColorView III so distinctive. Alongside its extremely high resolution, the Peltier-cooled camera has a high dynamic range, high frame rates, partial read-out and color binning. The color fidelity and superior contrast of acquisitions made using the ColorView III are what users find so compelling. At the same time, the camera has an excellent signal-to-noise ratio. The standard C-mount adaptor ensures that installation is easy on all common microscopes. Data transmission to the PC is via FireWire™ interface (IEEE 1394).

Perfect images…
easy to use and full software operation due to integration of all camera functions within the analySIS^® image-analytical software. “Digital Live Processing” is integrated into analySIS^® and offers numerous real-time functions which ensure that the camera’s entire dynamic range is exploited. Furthermore, analySIS^® has IntX (Intelligent eXposure) – an integrated solution for easy-to-use and automatic exposure control. This makes acquiring top-quality images at the mere click of a button easy for all users. No extensive technical background is required.

And after acquisition…
the ColorView III’s full integration into the analySIS^® software provides all the capabilities and advantages of advanced image processing. There’s an extensive image-labeling-and-filtering library, professional particle analysis, well-structured image and data archiving as well as report generation for professional documentation.

Depending on options, analySIS® expansion level and

Specifications

CC-12

CC-12 는 어떠한 광학 현미경 어플리케이션에도 대응하는 고해상도 12비트 칼라 CCD 카메라 입니다.

FireWire 기술 (IEEE1394)에 의한 Peltier 냉각 및 전력을 공급받으며 어떠한 저조도 환경에서도 최적의 신호대 잡음비를 제공해 줍니다.

CC-12는 “analySIS Five” Image Analyzer Software에 완전히 통합됩니다.

Digital solutions – Developed to be exceptional

The series of light microscope cameras by Soft Imaging System has been designed to meet the highest digital-imaging acquisition demands for all areas of the microscopy field.

The CC-12 is the successor to the ColorView 12. This 12-bit, Peltier-cooled and FireWire™(IEEE 1394) equipped color digital camera is the ideal introduction to digital image acquisition in the field of light microscopy.

All functions of the camera can be completely controlled and operated via the analySIS^®image-analytical software. No matter what current acquisition conditions are, real-time functions guarantee that the entire dynamic range is taken advantage of. This ensures the user optimal contrast all the time.

Following acquisition, CC-12’s total integration into analySIS^® provides the full range of options and advantages of the latest in image processing and analysis, from image labeling to archiving, report generation and e-mailing all the way on to photo-realistic printouts – and there’s no more need for the darkroom.

High Resolution
The CC-12 camera has a resolution of 1300 x 1030 pixels. This is three times greater than that of a regular video camera.

A camera that’s low-noise and cooled
Highly efficient readout technology (Correlated Double Sampling) coupled with Peltier-cooling of the CCD chip results in images of superior signal-to-noise ratio.

 Variable exposure times
Highly sensitive CCD elements are even capable of detecting signals that are extremely weak. The electronic shutter offers variable exposure times ranging from 100 µs to 160 seconds.

 High frame rate
The high speed ADC (Analog-Digital Converter) working at a clock rate of 20 MHz in full 12-bit dynamic range is able to perform double sampling even at a readout rate of 20 MHz. Various frame rates are supported by this camera. For example, the camera can be set to acquire at a high frame rate of more than 22 fps at TV resolution using 2x binning. View your zoomed-in sample, locate the area of interest and focus – all conveniently onscreen. No longer are you forced to trade off speed for quality. For acquisition the system switches automatically into the high-resolution mode. This avoids bleaching of your fluorescence specimen and offers optimal performance when setting parameters.

 FireWire™ Interface (IEEE 1394)
FireWire™ technology guarantees that the CC-12 installation is easy on any PC or laptop equipped with a FireWire™ port. The days when you were limited to a frame grabber and just a single camera are history. FireWire™ technology enables you to use multiple cameras on the same PC.

 Peltier-Cooling
Image noise is generally the result of one of two things: either the CCD chip is not being cooled to a low enough temperature (known as ”dark current”), or due to mechanical vibrations. For the CC-12, thermal noise and instability is not a problem because the CCD chip is Peltier-cooled and stabilized at 10°C, resulting in a very high signal-to-noise ratio. Noise is further suppressed by the application of a highly efficient digital readout technique known as Correlated Double Sampling.

 Installation is easy
The CC-12 can be mounted onto all light microscopes with a C-mount adaptor. Plus, you only need one cable for getting data and power to the PC’s FireWire™ port. No more clutter and no ’octopus’ of cables getting in your way.

 Real-time functions
CC-12 is fast. Put this in combination with the high speed of today’s CPU’s, and you’ve got an attractively broad range of real-time functions within analySIS^® available to you. These include automatic contrast control, automatic white balance and histogram display.

 Analyzing images
A vast library of text, graphic and editing functions is available for labeling images. Special filters and professional particle analysis assist in more extensive investigation of images. All this makes it simple to obtain reliable and reproducible results quickly.

 No more darkroom
Photo-quality printouts can be obtained following acquisition without any need for a darkroom nor its developing chemicals. And these photo-quality printouts are in your hands in minutes.

Archiving
analySIS^® offers you a powerful, fully network-able, image-archiving system that handles all the images and data generated during the process of image acquisition and documentation. Images can be stored along with text, sheets and other graphics as records for complete documentation of tasks and processing steps. Input, display and query masks can be defined independently.

Automatic report generation
Now you can produce multi-page reports quickly and efficiently. Select multiple images in the image database and insert them all into the report via a single command. In addition to the images themselves, you can have information from any database field automatically included in reports. Automatic scaling, detail zooms, and more – all available to optimize the way you work with images. All documents generated using the analySIS^® software can be inserted into reports. Use the report generator to print out images, related measurement sheets, and diagrams – all on the same page. This report generator provides you with the utmost flexibility for page layout and design. You set up your own templates exactly the way you want them to be. Templates need to be created just once. Templates are what your reports are based on and ensure that the appearance of your documents is uniform. Use the RTF Export function to export your reports to MS Word for continued editing.

CC-12 and mia
Automatic pattern recognition means you can use mia to montage multiple component imagesacquired with the CC-12 into a single, high-resolution image.
This is tremendously useful, eg, when you wish to display a sample in its entirety at high resolution but the microscope is only capable of showing a portion of the sample at such high resolution. All you need to do is define image size and resolution. The rest is taken care of automatically.

Software control of all camera functions

Depending on options, analySIS® expansion level and

F-view II

F-View II 는 12-bit monochrome CCD 카메라 입니다.

이 제품은 극도로 높은 감도, 저 노이즈, 고해상도의 정량화할 수 있는 이미지를 요구하는 응용분야에 이상적입니다.

F-View II 는 FireWire 기술 (IEEE1394)에 의한 Peltier 냉각 및 전력을 공급받으며 FISH 혹은 Single band-pass 필터를 사용하는 다중 노출 형광 응용분야를 위해 특별히 설계되었습니다.

F-View II 는  “analySIS Five” Image Analyzer Software에 완전히 통합됩니다.

Digital solutions – Developed to be exceptional!

Soft Imaging System’s digital cameras are designed to meet the steadily rising demands on digital image acquisition for all areas of microscopy. And so is the newly developed 12-bit, cooled CCD color camera F-View II, our latest 12-bit, Peltier-cooled, FireWire™-driven solution for fluorescence microscopy.

The search mode enables you to rapidly locate and conveniently focus in on the area of your sample of interest. This prevents any unnecessary bleaching of the sample.

The camera will automatically switch over to the high-resolution mode for acquisition. F-View II can also be easily operated using a laptop via the FireWire™ port.

All camera functions are fully controlled by the analySIS^® image-processing software. Real-time functions enable the use of the entire dynamic range under all conditions and guarantee the best contrast.

F-View II’s integration into analySIS^® provides all the capabilities and advantages of state-of-the-art digital image processing and analysis, ranging from image labeling, archiving, report generation and e-mailing, as well as photo-realistic printouts without the darkroom.

 High Resolution
The CCD chip of the F-View II has 1376 x 1032 pixel resolution. The 12-bit dynamic range means that even acquisition of images with very bright and faint regions is dynamically optimal.

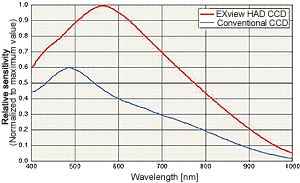

 High sensitivity
CCD elements are so sensitive that they have no trouble detecting even the weakest of signals. The electronic shutter offers variable exposure times ranging from 100 µs to 160 seconds.

 High frame rate
The high speed ADC (Analog-Digital Converter) working at a clock rate of 20 MHz in full 12-bit dynamic range is able to perform double sampling even at a readout rate of 20 MHz. Various frame rates are supported by this camera. For example, the camera can be set to acquire at a high frame rate of more than 22 fps at TV resolution using 2x binning. View your zoomed-in sample, locate the area of interest and focus – all conveniently onscreen. No longer are you forced to trade off speed for quality. For acquisition the system switches automatically into the high-resolution mode. This avoids bleaching of your fluorescence specimen and offers optimal performance when setting parameters.

 FireWire™ Interface (IEEE 1394)
FireWire™ technology guarantees that the F-View II installation is easy on any PC or laptop equipped with a FireWire™ port. The days when you were limited to a frame grabber and just a single camera are history. FireWire™ technology enables you to use multiple cameras on the same PC.

 Peltier-Cooling
Image noise is generally the result of the CCD chip not being cooled to a low enough temperature (“dark current”). For the F-View II, thermal noise is not a problem because the CCD chip is Peltier-cooled and stabilized at 10°C. Noise is further suppressed by the application of a highly efficient digital readout technique known as Correlated Double Sampling (CDS).

 Compact design
With its elegantly compact, newly designed housing, the F-View II can be mounted onto all light microscopes with a C-mount adaptor. No other interfaces or adaptors are necessary. Plus, you only need one cable for getting data and power to the PC’s FireWire™ port. No more clutter and no “octopus” of cables getting in your way.

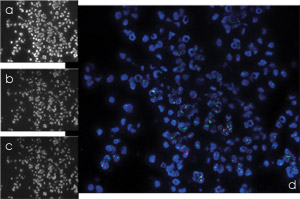

DAPI, PE, APC, PerCP & FITC image acquisitions
of stem cells: combined acquisitions done via themFip analySIS^® add-in

source: Dr. Hans Wessels
University Clinic for Children, Tübingen, Germany

 Real-time functions
F-View II is fast. Put this in combination with the high speed of today’s CPU’s, and you’ve got an attractively broad range of real-time functions within analySIS^®available to you. These include automatic contrast control, sharpness monitoring and histogram display.



 Analyzing images
A vast library of text, graphic and editing functions is available for labeling images. Special filters and professional particle analysis assist in more extensive investigation of images. All this makes it simple to obtain reliable and reproducible results quickly.



 No more darkroom
Photo-quality printouts can be obtained following acquisition without any need for a darkroom nor its developing chemicals. And these photo-quality printouts are in your hands in minutes.

a) Her2 gene (Spectrum Orange) b) DNA (DAPI) c) Chromosome (Spectrum Green) d) Combination with mFip

Specimen: Norbert Wey University of Zürich Department of Pathology Switzerland

Archiving
analySIS^® offers you a powerful, fully networkable, image-archiving system that handles all the images and data generated during the process of image acquisition and documentation. Images can be stored along with text, sheets and other graphics as records for complete documentation of tasks and processing steps. Input, display and query masks can be defined independently.

Automatic report generation
Now you can produce multi-page reports quickly and efficiently. Select multiple images in the image database and insert them all into the report via a single command. In addition to the images themselves, you can have information from any database field automatically included in reports. Automatic scaling, detail zooms, and more – all available to optimize the way you work with images.

All documents generated using the analySIS^® software can be inserted into reports. Use the report generator to print out images, related measurement sheets, and diagrams – all on the same page. This report generator provides you with the utmost flexibility for page layout and design. You set up your own templates exactly the way you want them to be. Templates need to be created just once. Templates are what your reports are based on and ensure that the appearance of your documents is uniform. Use the RTF Export function to export your reports to MS Word for continued editing.



Software control of all camera functions

   Manufacturer programmable RISC CPU + FPGA via firmware download

   Multi-threading code support on multi-CPU PC

Depending on options, analySIS® expansion level and

   Real-time automatic contrast control

   Real-time automatic white balance

 Real-time shading correction

 Real-time sharpness monitor



   Real-time histogram display

   Real-time FFT computation and display



 Specifications

Image Device	2/3 inch monochrome CCD Sensor
	(Effective area 8.9 x 6.7 mm array)
Effective Pixels	1376 x 1032 pixel, 6.45 um square pixels
Frame Rate	> 22 fps @ 2x binning
	39 fps @ 4x binning
	72 fps @ 8x binning
Binning	2x, 4x, 8x
Dynamic Range	12 bit
Exposure	100 us ~ 160 sec
Cooling	Peltier cooled, 10℃ @ 25℃ ambient
Pixel clock rate	20 MHz
Readout noise	< 2 counts
Non-linearity	< 0.6%
Anti-blooming	> 300
Dimensions (W x H x D)	100 x 85 x 50 mm
Mass	570g
Temperature monitor	CCD chip & housing
Temperature stabilized	Yes, ± 0.5 ℃
Interface Connector	FireWire (IEEE1394)
Lens mount	Standard C-mount

Pixelink PL-B686

Pixelink PL-B686 카메라는 고성능 현미경을 위하여 고안되었으며 고 품질, 고 해상력 영상을 획득하도록 디자인 되었습니다.

가장 큰 특징인 6백6십만 화소의 1인치형 CMOS 센서는 최고 해상도에서 5프레임의 속도 혹은 88프레임의 VGA 해상도의 영상 보기를 제공합니다.

다른 특징으로는 일부 영역의 영상 발췌 및 2x, 3x, 4x 및 6x Binnnig 기능을 제공합니다.

PL 686 카메라는 i-solution capture 소프트웨어 패키지와 함께 명시야 현미경 영상을 위한 높은 생산성을 갖는 영상 분석 시스템이 됩니다.

i-solution captures는 측정 및 주석, 영상의 개선과 획득한 영상의 관리 및 DB 저장과 같은 카메라를 위한 핵심 기능들을 제공합니다.

Specification Sheet

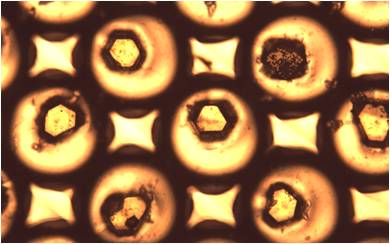

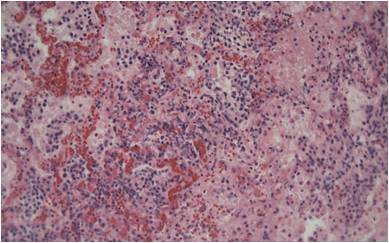

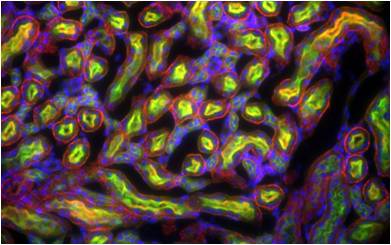

TOMORO AcquCAM Pro

TOMORO ACQUCAM PRO는 전문적인 현미경용

디지털 카메라로 완벽한 해상력의 이미지를 제공

합니다.

CMOS 보다 더 정교한 이미지를 제공하는 CCD이며

130만 화소의 고화질 이미지를 제공합니다.

또한 IEEE 1394 규격을 지원으로 사용상의 편리함과

400Mbps의 빠른 전송 속도로 고화질의 이미지를

초당 15프레임의 속도로 관찰 할 수 있습니다.

Features

＊ 1.3 Mega pixel Sony ICX205AK CCD Sensor

＊ Color, Progressive scan

＊ Lower Fixed Pattern Noise

＊ High Speed IEEE1394(400Mbits/sec)

＊ 15 fps at 1280×960 resolution

＊ Auto White Balance support

＊ RGB Bayer video output

＊ (?)Select 8or 10-bit pixel data

＊ (?)Faster frame rates with reduced Region of Interest

＊ GPI/Os for control of peripherals and synchronization of lighting (4in/4out)

＊ Preview Software provided (TOMORO Capture)

＊ Software compatible with Windows 98SE/2K/XP operating systems

＊ TWAIN and Direct Show Compatible

Specifications
