AcquCAM 5G

AcquCAM 5G



Down load Catalog – ACQUCAM 5G



  • USB 3.0 Color Camera
  • 2/3 ” Pregius Sensor
  • 2448 x 2048 pixel
  • Trigger input and I/O
  • Acquisition of images with sufficient contrast
  • High Sensitivity Sensor
  • Fast, seamless image transfer
  • Available of images with a very wide field of view
  • Low Noise Sensor

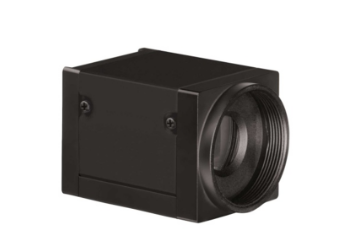

AcquCAM 5G color camera has a USB 3.0 interface and is the perfect solution for many industrial automation, quality assurance, security, surveillance and medical applications. The color camera ships with the very sensitive 2/3 inch CMOS Pregius  sensor. With up to 38 images per second, the AcuqCAM 5G is a low cost, yet highly versatile imaging solution. The camera includes a C to CS mount adapter, making it compatible to C and CS mount lenses. Using the optional CS to M12 board lens adapter, the camera is
also compatible to M12 board lenses.



Images with AcquCAM 5G



Sample : bovine pulmonary artery endothelial cell, BPAEC
Filter Set : JNO-U(B), B(B), G(B)
Camera : AcquCAM 5G
C-mount adapter : 1X
Lens : UPLNAPO40X
Above three images are merged and processed using ARM S/W



Specification

Spec Description
Size 2/3 inch
Resolution H: 2448, V: 2048
Pixel size H: 3.45 µm, V: 3.45 µm
Video formats& Frame rate 2448×2048 RGB64 @ 38 fps
2448×2048 RGB32 @ 35 fps
2448×2048 Y16 @ 37 fps                             2448×2048 Y411 @ 38 fps
2448×2048 YUY2 @ 37 fps
Dynamic range 8 / 12 bit
Exposure time 25 ㎲ to 4s
Lens mount C/Cs mount
Interface USB 3.0
Power supply 4.5 to 5.5 VDC
Dimensions H: 29 mm, W: 29 mm, L: 43 mm
Mass 65g



ARM

ARM is image analysis software for JNOPTIC AcquCAM cameras. This S/W is interchangeable with all WDM cameras regardless of camera brand and model and even more the most strength point is simple and easy use of length, area, angle, etc.

-> For more details, click here.
