Fluorescence, Fluorochrome

Fluo-4

Spectrum Chart

Fluo-4 Spectrum

Excitation (㎚) Emission (㎚)
494 516

Recommended Filter Set

  • 일반 형광 Lighting source 사용시

Filter Model No. Excitation filter (㎚) Dichroic mirror (㎚) Emission filter (㎚) Remarks
JNO-B(B) 480/30
(465~495)		 505 (LP) 535/40
(515~555)		 Medium Excitation band,
Bandpass Emission
49002 470/40
(450~490)		 495 (LP) 525/50
(500~550)		 Wide Excitation band,
Bandpass Emission
49011 480/40
(460~500)		 510 (LP) 535/50
(510~560)		 Wide Excitation band,
Bandpass Emission

  • 레이저 Lighting source 사용시

Filter Model No. Excitation filter (㎚) Dichroic mirror (㎚) Emission filter (㎚) Remarks
49904 488/10
(483~493)		 488 (LP) 525/50
(500~550)		 For use with laser between 485~491㎚

Very Narrow Excitation band,
Bandpass Emission







Fluorescence, Fluorochrome

Fluo-3

Spectrum Chart

Fluo-3 Spectrum

Excitation (㎚) Emission (㎚)
505 526

Recommended Filter

  • 일반 형광 Lighting source 사용시

Filter Model No. Excitation filter (㎚) Dichroic mirror (㎚) Emission filter (㎚) Remarks
49003 500/20
(490~510)		 515 (LP) 540/30
(525~555)		 Narrow Excitation band,
Bandpass Emission
49011 480/40
(460~500)		 510 (LP) 535/50
(510~560)		 Wide Excitation band,
Bandpass Emission



  • 레이저 Lighting source 사용시

Filter Model No. Excitation filter (㎚) Dichroic mirror (㎚) Emission filter (㎚) Remarks
49904 488/10
(483~493)		 488 (LP) 525/50
(500~550)		 For use with laser between 485~491㎚

Very Narrow Excitation band,
Bandpass Emission







Fluorescence, Fluorochrome

Emerald GFP

Spectrum

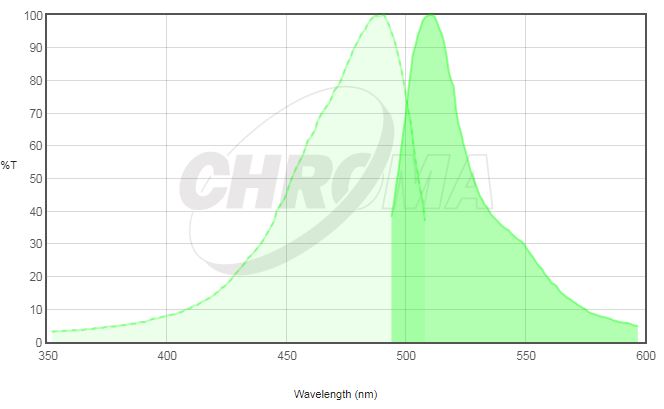

Emerald GFP Spectrum

Excitation (㎚) Emission (㎚)
489 510

Recommended Filter set

  • 일반 형광 Lighting source

Filter Model No. Excitation filter (㎚) Dichroic mirror (㎚) Emission filter (㎚) Remarks
JNO-B(B) 480/30
(465~495)		 505 (LP) 535/40
(515~555)		 Medium Excitation band,
Bandpass Emission
49002 470/40
(450~490)		 495 (LP) 525/50
(500~550)		 Wide Excitation band,
Bandpass Emission
49020 480/20
(470~490)		 495 (LP) 510/20
(500~530)		 Narrow Excitation band,
Bandpass Emission

  • 레이저 Lighting source

Filter Model No. Excitation filter (㎚) Dichroic mirror (㎚) Emission filter (㎚) Remarks
49904 488/10
(483~493)		 488 (LP) 525/50
(500~550)		 For use with laser between 485~491㎚

Narrow Excitation band,
Bandpass Emission







Fluorescence, Fluorochrome

EGFP

Spectrum

EGFP Spectrum
Excitation (㎚) Emission (㎚)
488 507

Recommended Filter set

  • 일반 형광 Lighting source

Filter Model No. Excitation filter (㎚) Dichroic mirror (㎚) Emission filter (㎚) Remarks
JNO-B(B) 480/30
(465~495)		 505 (LP) 535/40
(515~555)		 Medium Excitation band,
Bandpass Emission
49002 470/40
(450~490)		 495 (LP) 525/50
(500~550)		 Wide Excitation band,
Bandpass Emission
49020 480/20
(470~490)		 495 (LP) 510/20
(500~530)		 Narrow Excitation band,
Bandpass Emission

  • 레이저 Lighting source

Filter Model No. Excitation filter (㎚) Dichroic mirror (㎚) Emission filter (㎚) Remarks
49904 488/10
(483~493)		 488 (LP) 525/50
(500~550)		 For use with laser between 485~491㎚

Narrow Excitation band,
Bandpass Emission





Fluorescence, Fluorochrome

ECFP

Spectrum

ECFP Spectrum
Excitation (㎚) Emission (㎚)
434 477

Recommended Filter set

  • 일반 형광 Lighting source

Filter Model No. Excitation filter (㎚) Dichroic mirror (㎚) Emission filter (㎚) Remarks
39001 435/20
(425~445)		 455 (LP) 480/30
(465~495)		 Narrow Excitation band,
Bandpass Emission
49001 436/20
(426~446)		 455 (LP) 480/40
(460~500)		 Narrow Excitation band,
Bandpass Emission



  • 레이저 Lighting source

Filter Model No. Excitation filter (㎚) Dichroic mirror (㎚) Emission filter (㎚) Remarks
49902 436/20
(426~446)		 442 (LP) 480/40
(460~500)		 For use with laser between 430-445㎚

Narrow Excitation band,
Bandpass Emission
49903 436/20
(426~4460)		 442 (LP) 500/40
(480~520)		 For use with laser between 430-445㎚

Narrow Excitation band,
Bandpass Emission









Fluorescence, Fluorochrome

Cy3

Spectrum Chart

Cy3™ Spectrum

Excitation (㎚) Emission (㎚)
552 570

Recommended Filter Set

  • 일반 형광 Lighting source 사용시

Filter Model No. Excitation filter (㎚) Dichroic mirror (㎚) Emission filter (㎚) Remarks
JNO-G(B) 540/25
(527.5~552.5)		 565 (LP) 605/55
(577.5~632.5)		 Narrow Excitation band,
Bandpass Emission
49004 545/25
(532.5~557.5)		 565 (LP) 605/70
570~640)		 Narrow Excitation band,
Bandpass Emission
49014 530/30
(515~545)		 550 (LP) 575/40
(555~595)		 Medium Excitation band,
Bandpass Emission



  • 레이저 Lighting source 사용시

Filter Model No. Excitation filter (㎚) Dichroic mirror (㎚) Emission filter (㎚) Remarks
49907 532/10
(527~537)		 532 (LP) 575/50
(550~600)		 For use with laser between 529~535㎚

Narrow Excitation band,
Bandpass Emission
49908 532/10
(527~537)		 532 (LP) 590/50
(565~615)		 For use with laser between 529~535㎚

Narrow Excitation band,
Bandpass Emission













Fluorescence, Fluorochrome

Cy3.5

Spectrum Chart

Cy3.5™ Spectrum

Excitation (㎚) Emission (㎚)
581 598

Recommended Filter Set

  • 일반 형광 Lighting source

Filter Model No. Excitation filter (㎚) Dichroic mirror (㎚) Emission filter (㎚) Remarks
JNO-R1(B) 560/40
(540~580)		 600 (LP) 635/60
(605~665)		 Wide Excitation band,
Bandpass Emission
49008 560/40
(540~580)		 600 (LP) 630/75
(592.5~667.5)		 Wide Excitation band,
Bandpass Emission
49031 569/25
(556.5~581.5)		 588 (LP) 615/40
(595~635)		 Narrow Excitation band,
Bandpass Emission



  • 레이저 Lighting source

Filter Model No. Excitation filter (㎚) Dichroic mirror (㎚) Emission filter (㎚) Remarks
49909 561/10
(556~566)		 532 (LP) 600/50
(575~625)		 For use with laser between 529~535㎚

Very Narrow Excitation band,
Longpass Emission
49910 561/10
(556~566)		 514 (LP) 630/70
(595~665)		 For use with laser between 557~563㎚

Very Narrow Excitation band,
Bandpass Emission





Fluorescence, Fluorochrome

Cy2

Spectrum Chart

Cy2™ Spectrum
Excitation (㎚) Emission (㎚)
486 506

Recommended Filter Set

  • 일반 형광 Lighting source  사용시

Filter Model No. Excitation filter (㎚) Dichroic mirror (㎚) Emission filter (㎚) Remarks
JNO-B(B) 480/30
(465~495)		 505 (LP) 535/40
(515~555)		 Medium Excitation band,
Bandpass Emission
49002 470/40
(450~490)		 495 (LP) 525/50
(500~550)		 Wide Excitation band,
Bandpass Emission
49011 480/40
(460~500)		 510 (LP) 535/50
(510~560)		 Wide Excitation band,
Bandpass Emission

  • 레이저 Lighting source 사용시

Filter Model No. Excitation filter (㎚) Dichroic mirror (㎚) Emission filter (㎚) Remarks
49904 488/10
(483~493)		 488 (LP) 525/50
(500~550)		 For use with laser between 485~491㎚

Very Narrow Excitation band,
Bandpass Emission





Fluorescence, Fluorochrome

Calcium Green-1

댓글 한 개

Spectrum Chart

Calcium Green™-1 Spectrum
Excitation (㎚) Emission (㎚)
506 531

Recommended Filter Set

  • 일반 형광 Lighting source

Filter Model No. Excitation filter (㎚) Dichroic mirror (㎚) Emission filter (㎚) Remarks
JNO-B(B) 480/30
(465~495)		 505 (LP) 535/40
(515~555)		 Medium Excitation band,
Bandpass Emission
49003 500/20
(490~510)		 515 (LP) 540/30
(525~555)		 Narrow Excitation band,
Bandpass Emission
49011 480/40
(460~500)		 510 (LP) 535/50
(510~560)		 Wide Excitation band,
Bandpass Emission

  • 레이저 Lighting source 사용시

Filter Model No. Excitation filter (㎚) Dichroic mirror (㎚) Emission filter (㎚) Remarks
49904 488/10
(483~493)		 488 (LP) 525/50
(500~550)		 For use with laser between 485~491㎚

Very Narrow Excitation band,
Bandpass Emission
