TRITC

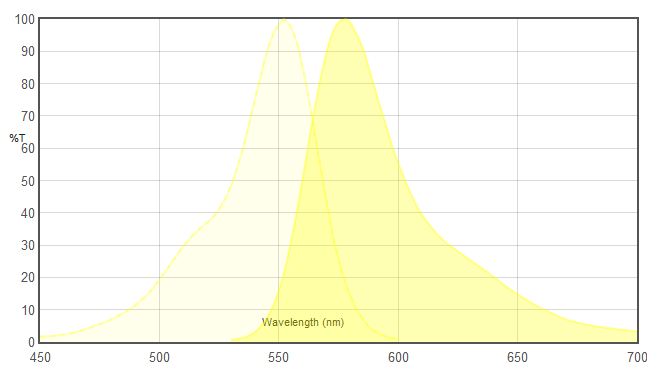

Spectrum Chart

Excitation () Emission ()
555 580

Recommended Filter set

  • 일반 형광 Lighting source 사용시

Filter Model No. Excitation filter (㎚) Dichroic mirror (㎚) Emission filter (㎚) Remarks
JNO-G(B) 540/25
(527.5~552.5)
565 (LP) 605/55
(577.5~632.5)
Narrow Excitation band,
Bandpass Emission
49004 545/25
(532.5~557.5)
565 (LP) 605/70
570~640)
Narrow Excitation band,
Bandpass Emission
49305 546/22
(535~557)
565 (LP) 590/33
(573.5~606.5)
Narrow Excitation band,
Bandpass Emission

  • 레이저 Lighting source 사용시

Filter Model No. Excitation filter (㎚) Dichroic mirror (㎚) Emission filter (㎚) Remarks
49908 532/10
(527~537)
532 (LP) 590/50
(565~615)
For use with laser between 529~535

Very Narrow Excitation band,
Bandpass Emission

49909 561/10
(556~566)
561 (LP) 600/50
(575~625)
For use with laser between 557~563

Narrow Excitation band,
Bandpass Emission

Information

Tetramethylrhodamine (TRITC) is a bright orange-fluorescent dye with excitation ideally suited to the 532 laser line. It is commonly conjugated to antibodies and proteins for cellular imaging applications.

Tramethylrhodamine (TRITC)은 532 ㎚ 레이저 라인에 이상적으로 적합한 여기가있는 밝은 주황색 형광 염료로서 일반적으로 세포 이미징 응용을위한 항체와 단백질에 접합됩니다.
