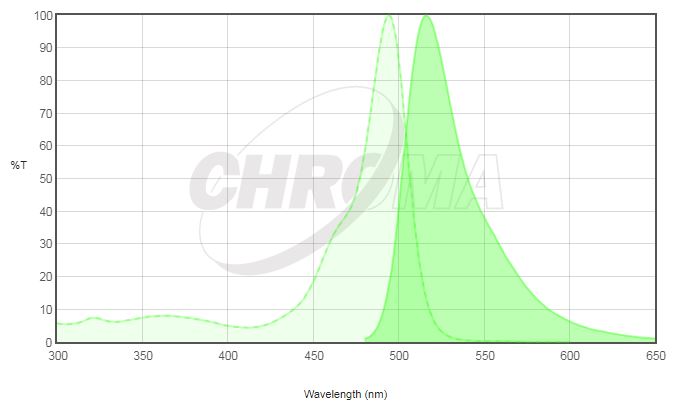

Spectrum Chart
Fluo-4 Spectrum
| Excitation (㎚) | Emission (㎚) |
| 494 | 516 |
Recommended Filter Set
-
일반 형광 Lighting source 사용시
| Filter Model No. | Excitation filter (㎚) | Dichroic mirror (㎚) | Emission filter (㎚) | Remarks |
| JNO-B(B) | 480/30 (465~495) |
505 (LP) | 535/40 (515~555) |
Medium Excitation band, Bandpass Emission |
| 49002 | 470/40 (450~490) |
495 (LP) | 525/50 (500~550) |
Wide Excitation band, Bandpass Emission |
| 49011 | 480/40 (460~500) |
510 (LP) | 535/50 (510~560) |
Wide Excitation band, Bandpass Emission |
-
레이저 Lighting source 사용시
| Filter Model No. | Excitation filter (㎚) | Dichroic mirror (㎚) | Emission filter (㎚) | Remarks |
| 49904 | 488/10 (483~493) |
488 (LP) | 525/50 (500~550) |
For use with laser between 485~491㎚
Very Narrow Excitation band, |
