Cy3

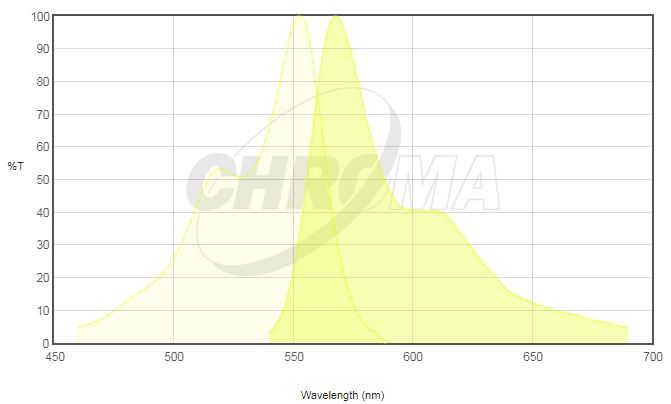

Spectrum Chart

Cy3™ Spectrum

Excitation () Emission ()
552 570

Recommended Filter Set

  • 일반 형광 Lighting source 사용시

Filter Model No. Excitation filter (㎚) Dichroic mirror (㎚) Emission filter (㎚) Remarks
JNO-G(B) 540/25
(527.5~552.5)
565 (LP) 605/55
(577.5~632.5)
Narrow Excitation band,
Bandpass Emission
49004 545/25
(532.5~557.5)
565 (LP) 605/70
570~640)
Narrow Excitation band,
Bandpass Emission
49014 530/30
(515~545)
550 (LP) 575/40
(555~595)
Medium Excitation band,
Bandpass Emission



  • 레이저 Lighting source 사용시

Filter Model No. Excitation filter (㎚) Dichroic mirror (㎚) Emission filter (㎚) Remarks
49907 532/10
(527~537)
532 (LP) 575/50
(550~600)
For use with laser between 529~535

Narrow Excitation band,
Bandpass Emission

49908 532/10
(527~537)
532 (LP) 590/50
(565~615)
For use with laser between 529~535

Narrow Excitation band,
Bandpass Emission
