CFP

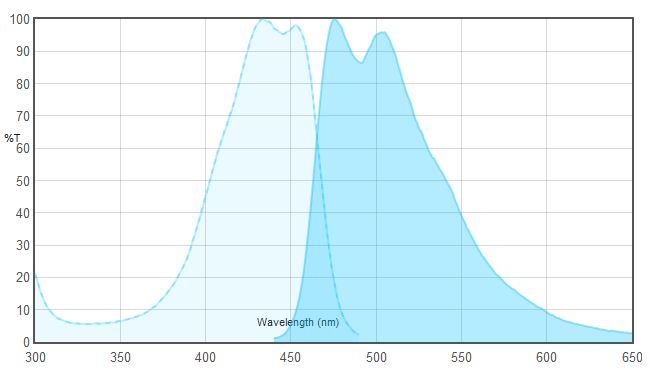

Spectrum Chart

CFP Spectrum
Excitation () Emission ()
433 475



Recommended Filter set

  • 일반 형광 Lighting source

Filter Model No. Excitation filter (㎚) Dichroic mirror (㎚) Emission filter (㎚) Remarks
39001 435/20
(425~445)
455 (LP) 480/30
(465~495)
Narrow Excitation band,
Bandpass Emission
49001 436/20
(426~446)
455 (LP) 480/40
(460~500)
Narrow Excitation band,
Bandpass Emission



  • 레이저 Lighting source

Filter Model No. Excitation filter (㎚) Dichroic mirror (㎚) Emission filter (㎚) Remarks
49902 436/20
(426~446)
442 (LP) 480/40
(460~500)
For use with laser between 430-445

Narrow Excitation band,
Bandpass Emission

49903 436/20
(426~4460)
442 (LP) 500/40
(480~520)
For use with laser between 430-445

Narrow Excitation band,
Bandpass Emission



Information

Cyan Fluorescent Protein (CFP) is a versatile biological marker for monitoring physiological processes, visualizing protein localization, and detecting transgenic expression in vivo. CFP can be excited by the 405 laser line and is optimally detected at 485 .

시안 형광 단백질 (Cyan Fluorescent Protein, CFP)은 생리 학적 과정을 모니터링하고, 단백질의 위치를 시각화하며, 생체 내에서 유전자 변형 (transgenic expression)을 검출하는 다목적 생물학적 표지자로서 CFP는 405 nm 레이저 라인에 의해 여기 될 수 있으며 485 에서 최적으로 검출됩니다.
