AcquCAM 3G

AcquCAM 3G

Down load Catalog – ACQUCAM 3G

  • USB 3.0 Color Camera
  • 1/1.8 ” Pregius Sensor
  • 2048 x 1536 pixel
  • Trigger input and I/O
  • Cost-effective color camera
  • High Sensitivity Sensor
  • Fast, seamless image transfer
  • Available of images with a very wide field of view
  • Low Noise Sensor

AcquCAM 3G color camera has a USB 3.0 interface and is the perfect solution for many industrial automation, quality assurance, security, surveillance and medical applications. The color camera ships with the very sensitive 1/1.8 inch CMOS Pregius  sensor. With up to 60 images per second, the AcuqCAM 3G is a low cost, yet highly versatile imaging solution. The camera includes a C to CS mount adapter, making it compatible to C and CS mount lenses. Using the optional CS to M12 board lens adapter, the camera is
also compatible to M12 board lenses.

Images with AcquCAM 3G

Sample : bovine pulmonary artery endothelial cell, BPAEC
Filter Set : JNO-U(B), B(B), G(B)
Camera : AcquCAM 3G
C-mount adapter : 1X
Lens : UPLNAPO40X
Above three images are merged and processed using ARM S/W

Specification

SpecDescription
Size1/1.8 inch
ResolutionH: 2048, V: 1536
Pixel sizeH: 3.45 µm, V: 3.45 µm
Video formats& Frame rate2048×1536 (3.1 MP) RGB64 @ 60 fps   2048×1536 (3.1 MP) RGB32 @ 60 fps
2048×1536 (3.1 MP) Y16 @ 60 fps 2048×1536 (3.1 MP) Y411 @ 60 fps
2048×1536 (3.1 MP) YUY2 @ 60 fps
Dynamic range8 / 12 bit
Exposure time20 ㎲ to 30s
Lens mountC/Cs mount
InterfaceUSB 3.0
Power supply4.5 to 5.5 VDC
DimensionsH: 29 mm, W: 29 mm, L: 43 mm
Mass65g

ARM

ARM is image analysis software for JNOPTIC AcquCAM cameras. This S/W is interchangeable with all WDM cameras regardless of camera brand and model and even more the most strength point is simple and easy use of length, area, angle, etc.

-> For more details, click here.

More images with AcquCAM 3G

-> For more details, click here.

AcquCAM 5G Images

AcquCAM 5G



More images with AcquCAM 5G



Sample : bovine pulmonary artery endothelial cell, BPAEC
Filter Set : JNO-U(B), B(B), G(B)
Camera : AcquCAM 5G
C-mount adapter : 1X
Lens : PlanApo60xWLSM
Above three images are merged and processed using ARM S/W



Sample : bovine pulmonary artery endothelial cell, BPAEC
Filter Set : JNO-U(L), B(L), G(L)
Camera : AcquCAM 5G
C-mount adapter : 1X
Lens : UPLNAPO40X
Above three images are merged and processed using ARM S/W





AcquCAM 23GR2 Images

AcquCAM 23GR2



More images with AcquCAM 23GR2



Sample : bovine pulmonary artery endothelial cell, BPAEC
Filter Set : JNO-U(L), B(L), G(L)
Camera : AcquCAM 23GR2
C-mount adapter : 1X
Lens : UPLNAPO40X
Above three images are merged and processed using ARM S/W



Sample : bovine pulmonary artery endothelial cell, BPAEC
Filter Set : JNO-U(B), B(B), G(B)
Camera : AcquCAM 23GR2
C-mount adapter : 1X
Lens : PlanApo60xWLSM
Above three images are merged and processed using ARM S/W











AcquCAM 23GR2

가시광선 및 근적외선 대응 칼라 카메라

Sample : bovine pulmonary artery endothelial cell, BPAEC
Camera : AcquCAM 23GR2 , Fluorescence Filter Set : JNO-U(B), B(B), G(B)
Objective lens:UPLNAPO40X, C-mount adapter : 1X
Above three images are merged and processed using JNO-ARM
AcquCAM 23GR2 fluorescence Image
OLYMPUS BX51, UPlanApo40x U-TV1XC JNOpTIC AcquCAM 23GR2, JNO-UBG(B) C TYPE
AcquCAM 23GR2 fluorescence Image
OLYMPUS BX51, UPlanApo40x U-TV1XC JNOpTIC AcquCAM 23GR2, JNO-UBG(B) B TYPE
  • USB 3.0 Color Camera
  • 1/1.2 ” Exmor Sensor
  • 1920×1200 pixel
  • Trigger input and I/O
  • Available  of taking images with a wavelength of 650nm or more, such as CY5
  • High Sensitivity Sensor (Best)
  • Fast, seamless image transfer
  • Available of images with a very wide field of view
  • Low Noise Sensor



The displays live digital images with gradual smoothness and combines exceptional resolution  with faithful color reproduction.The new sensors feature a global shutter function and able to capture a high-speed moving image without focal plane distortion. High-speed processing, low noise and low power dissipation by using column-parallel A/D conversion. equipped with trigger mode, and the external pulse can control accumulation time. The Sensor also have a pulse output function to indicate respective conditions during shutter operation and can be coordinated with peripheral circuits. High-definition images can be displayed live at a rate of high frames per second. without compression. Such imaging quality enables even the finest cellular regions to be observed clearly and distinctly without deterioration. While focusing is made stress free.

Images with AcquCAM 23GR2

Sample : bovine pulmonary artery endothelial cell, BPAEC
Filter Set : JNO-U(B), B(B), G(B)
Camera : AcquCAM 23GR2
C-mount adapter : 1X
Lens : UPLNAPO40X
Above three images are merged and processed using ARM S/W

JNO-ARM

Advance Realtime Monitor. Easy-to-Use, Image Enhancement, etc

1. Information

ARM is image analysis software for JNOPTIC AcquCAM cameras. This S/W is interchangeable with all WDM cameras regardless of camera brand and model and even more the most strength point is simple and easy use of length, area, angle, etc.

2. Simple measurement tools

  • Measurement Tools: Count, Distance, Angle, Area, etc.
  • Guide Lines: Cross Line, Rectangular Lattice, Circular Grid
  • Scale Panel on Live/Image Screen
  • Available measurement on LIVE image and saved image mode

3-1. Specialization for observation of fluorescence images

Improvement Function about Fluorescence Microscopy Image. (Used function: Auto Level, Low level, Pseudo Color, Merge Image)

Bottom on the left is merged image without improvement of image. And the bottom on the right is merged image after improvement of image. These images are shot by JNOPTIC AcquCAM Pro/G3 camera

3-2-1 Effect of high-contrast image with simple operation (Monochrome)

Improvement Function about Microscopy Image Monochrome. (Used function: Auto Level)

Effective improvement of image with simple operation. This image is shot by JNOPTIC Pro/S3 camera

3-2-2 Effect of high-contrast image with simple operation (Color)

Improvement Function about Microscopy Image. (Used function: Auto Level)

Effective improvement of image with simple operation. These images are shot by JNOPTIC AcquCAM Pro/G3 camera

3-3-1 Live Pseudo Color (for color camera)

When you get fluorescence images using color camera, if the unwanted channel was shown because of cross talk, you could remove this channel to take advantage of function of Live Pseudo.
Improvement Function about Fluorescence Microscopy Live Camera Image. (Used function: Live Pseudo Color)
 The extraction of wanted color information from color image (Remove BR on RGB source) These images are shot by JNOPTIC AcquCAM Pro/G3 camera






3-3-2 Live Pseudo Color (for Monochrome camera)

When you get fluorescence images using monochrome camera, you can raise efficiency of acquisition for fluorescence images to add similar false color to the color to be shown on the eyepiece in real time.
Improvement Function about Fluorescence Microscopy Live Monochrome Camera Image. (Used function: Live Pseudo Color)
 Improvement of usage environment for monochrome camera to add false color on the image. These images are shot by JNOPTIC AcquCAM Pro/S3 camera





4. JNO-MHU(Option Unit)

Available measuring height with additional unit, JNO-MHU

※ JNO-MHU is sold separately as optional unit.

Left: Focus on top of sample (Z-axis reset), Right: Focus on bottom of sample (Z-axis height measurement)

 < Measuring condition : over 20x objective, temp 20°C >


Responding Model Measurement value unit Measurable height Error of measuring 1000㎛ Recommended measuring height
CX 41 0.2 ㎛ -9.9 ~ 29.9㎜ Below ±20㎛ Below ± 2000㎛
CKX 41 0.2 ㎛ -9.9 ~ 29.9㎜ Below ±20㎛ Below ± 2000㎛
BX – FM 0.2 ㎛ -9.9 ~ 29.9㎜ Below ±20㎛ Below ± 2000㎛
BX 51/53 0.1 ㎛ -9.9 ~ 29.9㎜ Below ±10㎛ Below ± 1000㎛
MX 51 0.1 ㎛ -9.9 ~ 29.9㎜ Below ±10㎛ Below ± 1000㎛
MX 61L/61 0.1 ㎛ -9.9 ~ 29.9㎜ Below ±10㎛ Below ± 1000㎛

5. Reporting to Excel

Specification

Spec Description
Size 1/1.2 inch
Resolution H: 1920, V: 1200
Pixel size H: 5.86 µm, V: 5.86 µm
Video formats& Frame rate 1920×1200 RGB24@ 54 fps
1920×1200 Y800@ 162 fps
1920×1200 Y16@ 80 fps                             1920×1200 Y411 @ 108 fps
1920×1200 YUY2 @ 81 fps
Dynamic range 8 / 12 bit
Exposure time 20 ㎲ to 30s
Lens mount C/Cs mount
Interface USB 3.0
Power supply 4.5 to 5.5 VDC
Dimensions H: 29 mm, W: 29 mm, L: 43 mm
Mass 65g

More images with AcquCAM 23GR2

-> For more details, click here.

AcquCAM 5G

AcquCAM 5G



Down load Catalog – ACQUCAM 5G



  • USB 3.0 Color Camera
  • 2/3 ” Pregius Sensor
  • 2448 x 2048 pixel
  • Trigger input and I/O
  • Acquisition of images with sufficient contrast
  • High Sensitivity Sensor
  • Fast, seamless image transfer
  • Available of images with a very wide field of view
  • Low Noise Sensor





AcquCAM 5G color camera has a USB 3.0 interface and is the perfect solution for many industrial automation, quality assurance, security, surveillance and medical applications. The color camera ships with the very sensitive 2/3 inch CMOS Pregius  sensor. With up to 38 images per second, the AcuqCAM 5G is a low cost, yet highly versatile imaging solution. The camera includes a C to CS mount adapter, making it compatible to C and CS mount lenses. Using the optional CS to M12 board lens adapter, the camera is
also compatible to M12 board lenses.



Images with AcquCAM 5G



Sample : bovine pulmonary artery endothelial cell, BPAEC
Filter Set : JNO-U(B), B(B), G(B)
Camera : AcquCAM 5G
C-mount adapter : 1X
Lens : UPLNAPO40X
Above three images are merged and processed using ARM S/W



Specification

Spec Description
Size 2/3 inch
Resolution H: 2448, V: 2048
Pixel size H: 3.45 µm, V: 3.45 µm
Video formats& Frame rate 2448×2048 RGB64 @ 38 fps
2448×2048 RGB32 @ 35 fps
2448×2048 Y16 @ 37 fps                             2448×2048 Y411 @ 38 fps
2448×2048 YUY2 @ 37 fps
Dynamic range 8 / 12 bit
Exposure time 25 ㎲ to 4s
Lens mount C/Cs mount
Interface USB 3.0
Power supply 4.5 to 5.5 VDC
Dimensions H: 29 mm, W: 29 mm, L: 43 mm
Mass 65g



ARM

ARM is image analysis software for JNOPTIC AcquCAM cameras. This S/W is interchangeable with all WDM cameras regardless of camera brand and model and even more the most strength point is simple and easy use of length, area, angle, etc.

-> For more details, click here.



More images with AcquCAM 5G

-> For more details, click here.





AcquCAM 5Gtemp

AcquCAM Pro/G3

가장 저렴한 가격의 형광현미경용 칼라 카메라

특성을 표현 할 수 있는 이미지 모음 준비

AcquCAM Pro/S3

가장 저렴함 가격의 형광현미경용 흑백 카메라

칼라 카메라보다 3배 좋은 형광 감도

생리학교실 전용 카메라

특성을 표현 할 수 있는 이미지 모음 준비



AcquCAM 3G

비용대비 최고의 효율의 칼라 카메라

특성을 표현 할 수 있는 이미지 모음 준비



AcquCAM 5G

넓은 영역을 찍을 수 있는 칼라 카메라

특성을 표현 할 수 있는 이미지 모음 준비



AcquCAM 23GR2

CY5와 같이 650㎚이상의 파장의 이미지를 찍을 수 있는 카메라

특성을 표현 할 수 있는 이미지 모음 준비



AcquCAM 23S2

가성비 최고의 형광현미경용 흑백카메라

가성비 최고의 생리학교실용 카메라

1/1.2inch로 현미경시야에 최적화된 센서 사이즈

0.63x의 카메라 아답터와 조합시에 최적의 넓이의 이미지를 획득할 수 있습니다.

특성을 표현 할 수 있는 이미지 모음 준비





Dicam pro

Dicam pro

intensified digital 12bit CCD camera system



PCO사에서 제작한 Dicam pro 카메라는 고속의 intensified CCD를 장착한 시스템입니다.

 12bit 이미지에 130만화소 고해상도를 지원하며 S/N 비가 낮고 단일 원자 검출 능력이 뛰어난 것이 특징입니다.

 카메라와 PC는 고속의 직렬 광데이터 링크로 연결됩니다.

Dicam pro의 intensified digial CCD 카메라 시스템은 spray imaging, laser induced fluorescence imaging or ballistics와 같이 초고속의 카메라 application을 요구로 하는 분야에 완벽하게 적합합니다.



Features

  ▲ fast shutter down to 3ns (optional 1.5ns)

  ▲ excellent sensitivity of the system allows single photon detection

  ▲ 12bit dynamic range

  ▲ high resolution MCP-image intensifier & CCD (1280x1024pixel)

  ▲ exposure times from 3ns (optional 1.5ns) – 1000s

  ▲ spectral sensitivity from UV to NIR

  ▲ PCI interface board “plug & play

  ▲ binning (horizontal & vertical)

  ▲ thermo-electrical cooling (Peltier) of CCD image sensor down to -12°C

  ▲ optical or electrical triggering

  ▲ various MCP photocathodes – multialkali, S20, GaAs, GaAsP

  ▲ two discrete images with an interframing time of 500ns (PIV)

  ▲ multiple exposures

  ▲ serial high speed data transfer via fiber optic link (FOL)

  ▲ free software camware and software development kit included



Spectral response of MCP



Specification



Examples of applications

Pixelfly QE

Pixelfly QE

high performance digital 12bit CCD camera system



PCO사에서 제작한 Pixelfly QE 카메라는 12bit cooled CCD가 장착된 초소형 고성능 이미징 시스템입니다.

 공간을 차지하는 열전자 cooling 장치가 없이도 디지털 온도 보정이 가능하여 카메라를 소형화 하였습니다..

 이 시스템은 standard PCI나 compact PCI보드와 고속 직렬 데이터 링크를 통해 연결되는 초소형 카메라 헤드로 구성되어 있습니다.

Pixelfly의 디지털 카메라 시스템은 microscopy, spectroscopy, quality control과 같이 여러 과학 및 산업 이미지 application 분야에 완벽하게 적합합니다.



Features

superior quantum efficiency up to 65%

  ▲ ultra compact design

  ▲ 12bit dynamic range

  ▲ high resolution (1392 x 1024pixel)

  ▲ temperature compensated

  ▲ exposure times from 5μs – 65s

  ▲ readout noise typ. 7e- rms

  ▲ serial high speed data transfer up to 10m

  ▲ standard PCI or compact PCI control board

  ▲ integrated front-end processor with opto-coupler input and highside driver

  ▲ free software camware and software development kit included

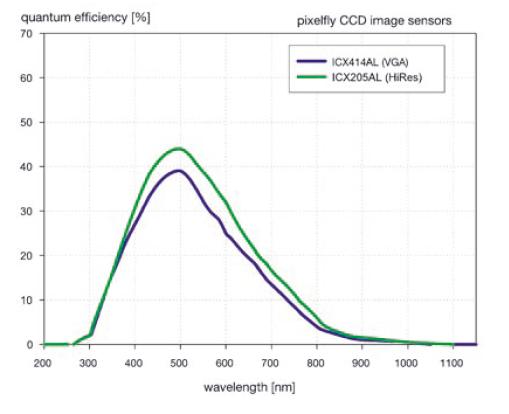

Quantum Efficiency



Specification



Examples of applications

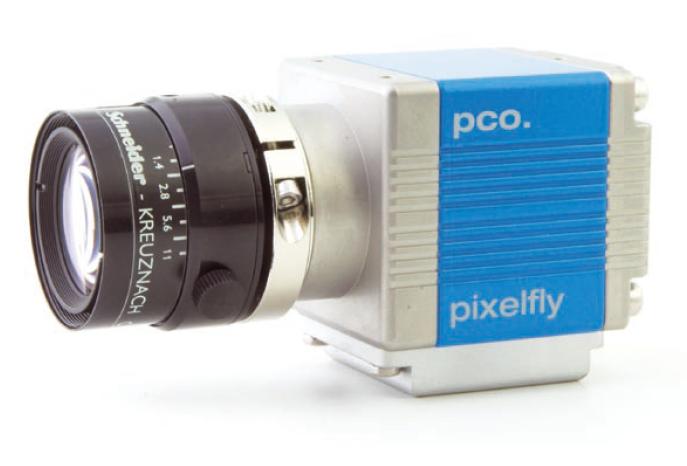

Pixelfly

Pixelfly

high performance digital 12bit CCD camera system



PCO사에서 제작한 Pixelfly 카메라는 12bit cooled CCD가 장착된 초소형 고성능 이미징 시스템입니다.

 공간을 차지하는 열전자 cooling 장치가 없이도 디지털 온도 보정이 가능하여 카메라를 소형화 하였습니다..

 이 시스템은 standard PCI나 compact PCI보드와 고속 직렬 데이터 링크를 통해 연결되는 초소형 카메라 헤드로 구성되어 있습니다.

Pixelfly의 디지털 카메라 시스템은 microscopy, spectroscopy, quality control과 같이 여러 과학 및 산업 이미지 application 분야에 완벽하게 적합합니다.



Features

  ▲ superior quantum efficiency up to 65%

  ▲ ultra compact design

  ▲ 12bit dynamic range

  ▲ high resolution (1392 x 1024pixel)

  ▲ temperature compensated

  ▲ exposure times from 5μs – 65s

  ▲ readout noise typ. 7e- rms

  ▲ serial high speed data transfer up to 10m

  ▲ standard PCI or compact PCI control board

  ▲ integrated front-end processor with opto-coupler input and highside driver

  ▲ free software camware and software development kit included



Quantum Efficiency



Specification



Examples of applications

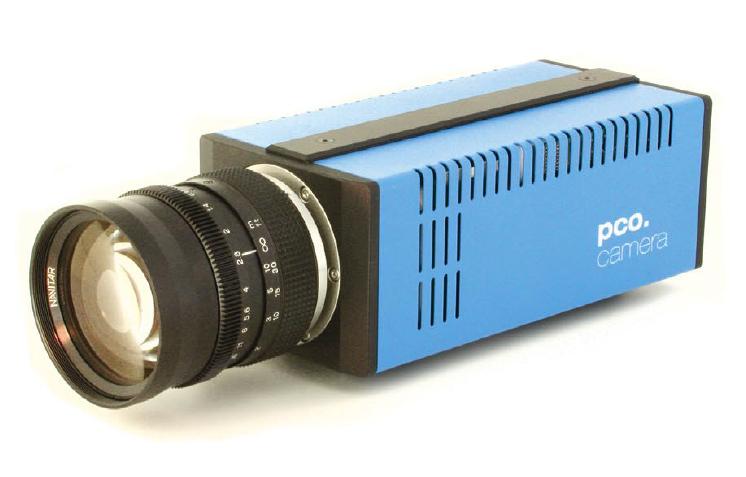

PCO. 1200s

PCO. 1200s

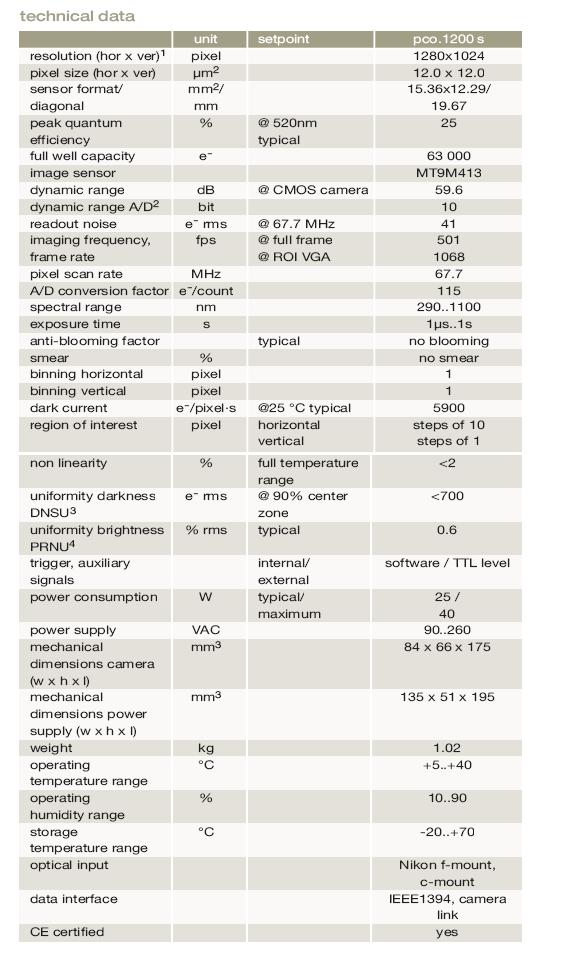

digital high speed 10bit CMOS camera system



PCO사에서 제작한 PCO.1200 hs 카메라는 10 bit CMOS 센서가 부착된 고속의 이미지 시스템입니다.

 camRAM 이라는 새로운 이미지 memory를 사용하여 820MB/s의 빠른 이미지 레코딩을 구현하며 130만화소의 고해상도, 저잡음의 이미지를 보여줍니다.

 compact 카메라와 external power supply 로 구성되어 있으며, 이미지 데이터는 컴퓨터로 standard data interface(IEEE 1394 firewire, camera link)를 통해 전송됩니다.

Pco. 1200s의 디지털 카메라 시스템은 Material testing, fast inspection, external crash tests, super slow motion image recording for video clips & advertising과 같이 고속의 카메라 이미지 application 분야에 완벽하게 적합합니다.



Features

  ▲ 500 fps at full resolution (1068 fps at VGA resolution)

  ▲ extremely fast image recording – 820MB/s

  ▲ high resolution (1280 × 1024 pixel)

  ▲ exposure time range 1 – 1 s

  ▲ image memory in camera (camRAM up to 4 GB)

  ▲ standard interfaces (IEEE 1394, camera link)



Specification



Examples of applications
