AcquCAM5/U3

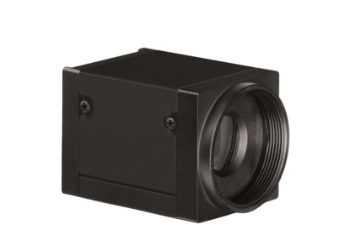

 JNOPTIC AcquCAM5/U3 USB 3.0 camera is the perfect solution for many industrial automation, quality assurance, security, surveillance, and medical applications.

Utilizing a color CMOS sensor up to 2592×1944, this camera features a variety of input, output, strobe, and trigger options via an external Hirose port. With up to 15fps and a trigger delay of less than 5 micro seconds, this USB 3.0 camera boasts a low cost and highly versatile imaging solution.

  • 5 Mega pixel CMOS camera
  • Color, Up to 15 images/s
  • Preview software provided (JNOPTIC Capture)
  • Software compatible with Windows XP/ Vista/ 7/ 8 operating systems



Wide useful camera for various field



Emphasis function on variety of images

With emphasis function, BLACK BALANCE / AUTO LEVEL of ARM on variety images, you could acquire cleaner and sharper images. ※ These images were shot by AcquCAM 5/U3 Package.
With emphasis function, BLACK BALANCE / AUTO LEVEL of ARM
on variety images, you could acquire cleaner and sharper images.
※ These images were shot by AcquCAM 5/U3 Package.



Live image observation of rapid frame

Max. 60 Frame/s of RGB 32 bit 640 X 480 Resolution standards
Max. 60 Frame/s of RGB 32 bit 640 X 480 Resolution standards



[Specification]
Spec Description
Size 1/2.5 inch
Resolution H: H: 2592, V: 1944
Pixel size H: 2.2 µm, V: 2.2 µm
Video formats

& Frame rate

MAX : 2592×1944 @ 15 fps

MIN : 640×480 @ 132 fps

Sensitivity 0.05 lx
Exposure time 1/20000 to 1/4 s
Lens mount C/Cs mount
Interface USB 3.0
Power supply 4.5 to 5.5 VDC
Dimensions H: 29 mm, W: 29 mm, L: 43 mm
Mass 65 g
